✦High precision and high frequency stability. ✦Extremely good for reducing EMI effect. ✦The best choice of Bluetooth, wireless communication set, DSC, PDA, and mobile phone. ✦RoHS Compliant / Pb Free.
Product Details
Features
✦High precision and high frequency stability.
✦Extremely good for reducing EMI effect.
✦The best choice of Bluetooth, wireless communication set, DSC, PDA, and mobile phone.
✦RoHS Compliant / Pb Free.
Crystals specifications:
|
ITEMS/TYPE |
S32 |
|
Frequency Range |
8~64MHz |
|
Load Capacitance |
8pF, 10pF, 12pF, or specify |
|
Frequency Tolerance (at 25°C) |
±10ppm, ±20ppm, or specify |
|
Frequency Stability Over Operating Temperature Range |
±10ppm, ±20ppm, or specify |
|
Operating Temperature Range |
-40-+85°C, or specify |
|
Shunt Capacitance (C0) |
3pF Max. |
|
Drive Level |
1~200μW (100μW typical) |
|
Aging (at 25°C) |
± 3 ppm/year Max. |
|
Storage Temperature Range |
-40~+125°C |

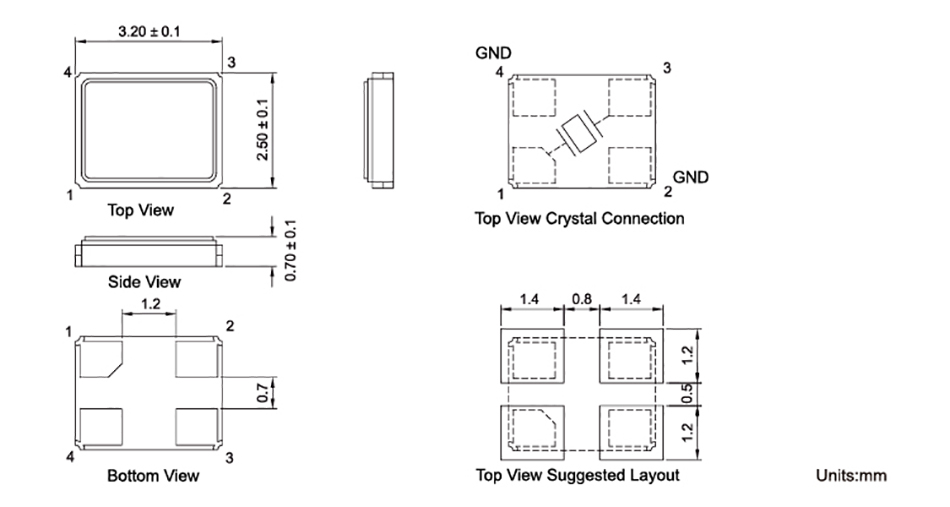

Dimensions and patterns(unit:mm):
