Reliable seam sealed ceramic package. Wide operating termperature range. Superior and reliable performance in harsh environment. Application: TPMS, ECM, ABS and sensor modules. RoHS Compliant / Pb Free.
Product Details
The 2016 automotive-grade passive crystal offers high precision and long-term stability in a compact 2.0x1.6 mm package. Designed to meet stringent automotive standards, it delivers excellent frequency stability and low aging across a wide temperature range, ensuring reliable operation under extreme conditions.
Ideal for automotive electronics, this crystal is suitable for applications requiring robust performance under vibration, shock, and temperature variations. Its small size and high reliability make it perfect for advanced driver assistance systems (ADAS), infotainment modules, communication networks, and engine control units.
Crystal oscillator parameters:
| ITEMS/TYPE | AS2 |
| Frequency Range | 16~60MHz |
| Vibration Mode | Fundamental |
| Load Capacitance | 8pF, 10pF, 12pF, or specify |
| Frequency Tolerance (at 25℃) | ±20ppm, or specify |
| Frequency Stability Over Operating Temperature Range | ±150ppm Max. |
| Operating Temperature Range | -40~+125℃, or specify |
| Drive Level | 1~200μW Max. (100μW typical) |
| Storage Temperature Range | -40~+125℃ |
| Reliability Standard | AEC-Q200 |

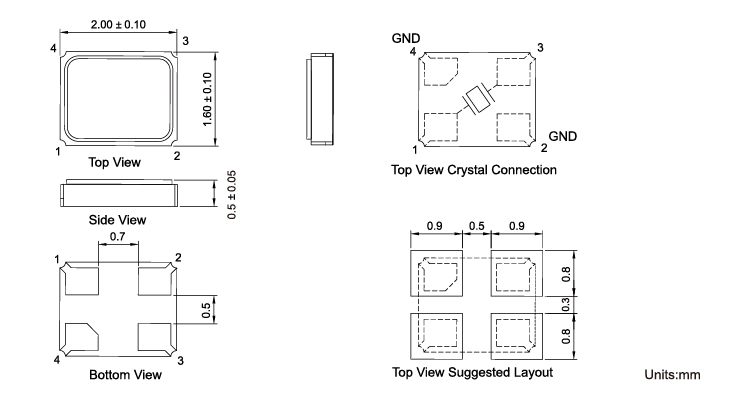

Dimensions and patterns(unit:mm)
