✦Small SMD seam sealed clock crystal oscillator units. ✦High precision characteristic covering up to wide frequency range. ✦Designed for automatic mounting and reflow soldering. ✦Tri-State function available. ✦Supply voltage range : 1.8V~3.3V. ✦High stability, low jitter, low power consumption. ✦Main application : wireless communication set, PDA, and DSC. ✦RoHS Compliant / Pb Free
Product Details
Features
✦3225 active crystal oscillator, ultra small SMD metal packaging
✦Clock quartz crystal oscillator
✦Compliant with RoHS and lead-free environmental protection
Crystal oscillator parameters:
| ITEMS/TYPE | O32 |
| Frequency Range | 1~200MHz |
| Output Type | CMOS |
| Output Load | 15 pF , or specify |
| Oscillation Mode | Fundamental / 3rd Overtone |
| Supply Voltage | 1.8V~5.0V, or specify |
| Frequency Stability | ± 20 ppm , or specify |
| Operating Temperature Range | -40~+85 ℃ , or specify |
| Storage Temperature Range | -55~+125 ℃ |
| Voltage Vol ( Max. )/Voltage Voh ( Min. ) | VOH=90%Vdd / VOL+10%Vdd |
| Rise ( Tr ) / Fall ( Tf ) Time | 8 ns Max. |
| Current Consumption | 20 mA Max. |
| Symmetry | 40 ~ 60 % |
| Start-up Time | 5 ms Max. |
| Phase Jitter ( 12 KHz ~ 20 MHz ) | 1 ps Max. |
| Aging ( at 25℃) | ± 3 ppm / year Max. |

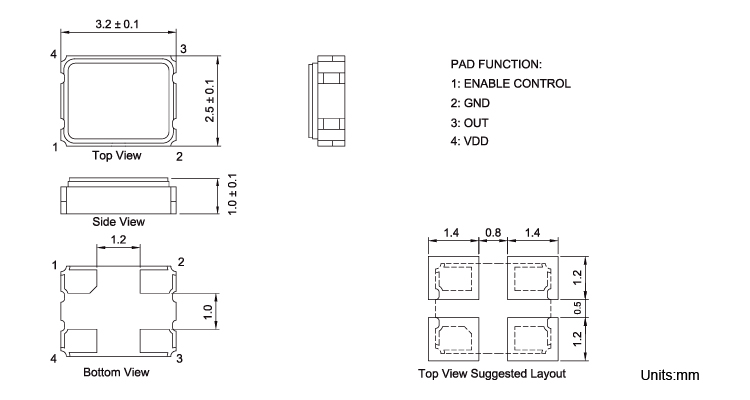

Dimensions and patterns(unit:mm)
