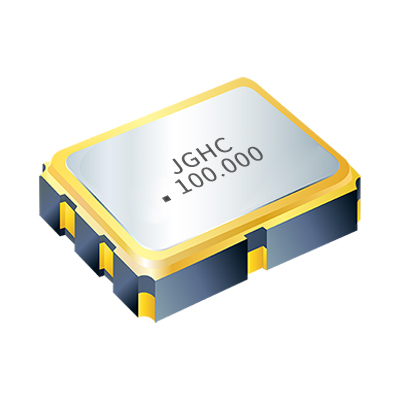

✦Voltage Controlled Crystal Oscillator (VCXO). ✦Fundamental solution. ✦CMOS output, output frequencies 1 MHz to 200 MHz. ✦Wide pull range and good linearity. ✦Excellent low phase noise and jitter. ✦Tri-State function available. ✦Main applications : SDH/ SONET, Ethernet, Base Stations. ✦RoHS Compliant / Pb Free.
Product Details
✦Voltage Controlled Crystal Oscillator (VCXO).
✦Fundamental solution.
✦CMOS output, output frequencies 1 MHz to 200 MHz.
✦Wide pull range and good linearity.
✦Excellent low phase noise and jitter.
✦Tri-State function available.
✦Main applications : SDH/ SONET, Ethernet, Base Stations.
✦RoHS Compliant / Pb Free.
Crystal oscillator parameters
| ITEMS/TYPE | V32 |
| Frequency Range | 10~200MHz |
| Oscillation Mode | Fundamental |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V, or specify |
| Output Type | CMOS |
| Operating Temperature Range | - 40~+85℃, or specify |
| Storage Temperature Range | - 55 ~ + 125 ℃ |
| Voltage Vol ( Max.) / Voh ( Min.) | 0.1 VDD / 0.9 VDD |
| Rise ( Tr ) / Fall ( Tf ) Time | 5ns Max. |
| Supply Current | 60 mA Max. |
| Symmetry | 45 ~ 55 % |
| Start-up Time | 10ms Max. |
| Frequency Pulling Range | ±50ppm, ±100, or specify. |
| Nominal Control Voltage | 0.5 VDD |
| Control Voltage Range | 0 ~ VDD |
| Linearity | ±10% Max. |
| Phase Jitter(12KHz~20MHz ) | 1ps Max. |
Dimensions and patterns(unit:mm)
