The TSX1612 Temperature Sensing Crystal features an integrated thermistor for temperature sensing, delivering high frequency stability over temperature variations. It is widely used in mobile communication applications.
Common frequencies include 26 MHz, 38.4 MHz, 52 MHz, and 76.8 MHz, with custom options available.

Crystals specifications:

ITEMS/TYPE	T16
Frequency Range	26-76.8MHz
Load Capacitance	12pF, or specify
Frequency Tolerance (at 25 ℃)	±10 ppm, or specify
Frequency Stability Over Operating Temperature Range	±10 ppm, or specify
Operating Temperature Range	-30~+85℃, or specify
Shunt Capacitance (C0)	3 pF Max.
Drive Level	1 ~ 100μW (typical )
Aging (at 25 ℃)	± 1 ppm / year Max.
Storage Temperature Range	-40~ + 105 ℃
Thermistor Resistance (25℃)	100 kΩ , or specify
Thermistor B-constant (25~50℃)	4250, or specify

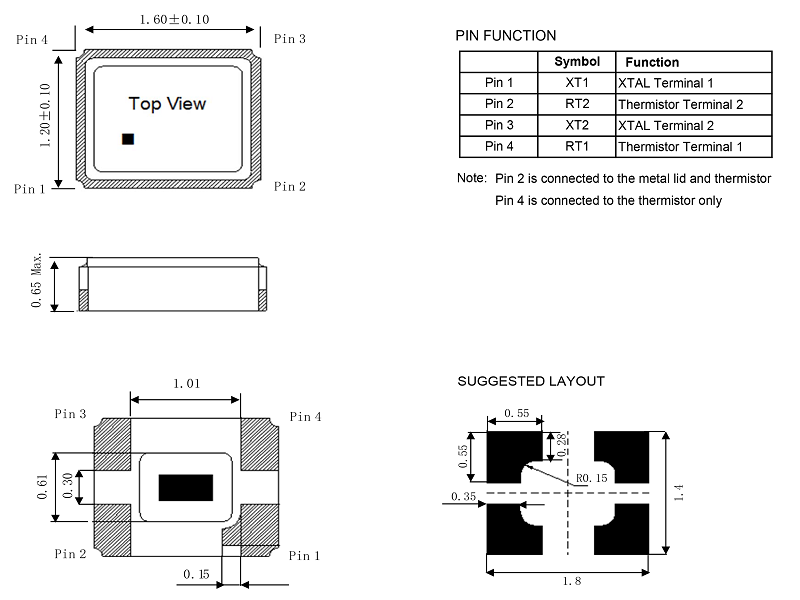

Dimensions and patterns(unit:mm):
