TSX2016 Temperature Sensing Crystal

CLASSIFICATION

Contact Information

Contact Person: Alan Lang
Mobile: +86 13265413323
WeChat: +86 132 6541 3323
WhatsApp: +86 132 6541 3323
Email: alan@jghcrystal.com

TSX2016 Temperature Sensing Crystal

✦Extremely small SMD type crystal units.
✦High precision and high frequency stability.
✦Excellent heat resistance and environmental characteristics.
✦Applications in PDA,DSC,DVC,PC, etc.
✦RoHS Compliant / Pb Free.

Sample Application PDF Download

Product Details

The TSX2016 Temperature Sensing Crystal features an integrated thermistor for temperature sensing, delivering high frequency stability over temperature variations. It is widely used in mobile communication applications.
Common frequencies include 26 MHz, 38.4 MHz, 52 MHz, and 76.8 MHz, with custom options available.

Crystals specifications:

ITEMS/TYPE	T21
Frequency Range	19.2-54MHz
Load Capacitance	12pF, or specify
Frequency Tolerance (at 25 ℃)	±10 ppm, or specify
Frequency Stability Over Operating Temperature Range	±10 ppm, or specify
Operating Temperature Range	-30~+85℃, or specify
Shunt Capacitance (C0)	3pF Max.
Drive Level	1~200μW (50μW typical )
Aging (at 25 ℃)	± 1 ppm / year Max.
Storage Temperature Range	-40~ + 105 ℃
Thermistor Resistance (25℃)	100kΩ , or specify
Thermistor B-constant (25~50℃)	4250, or specify

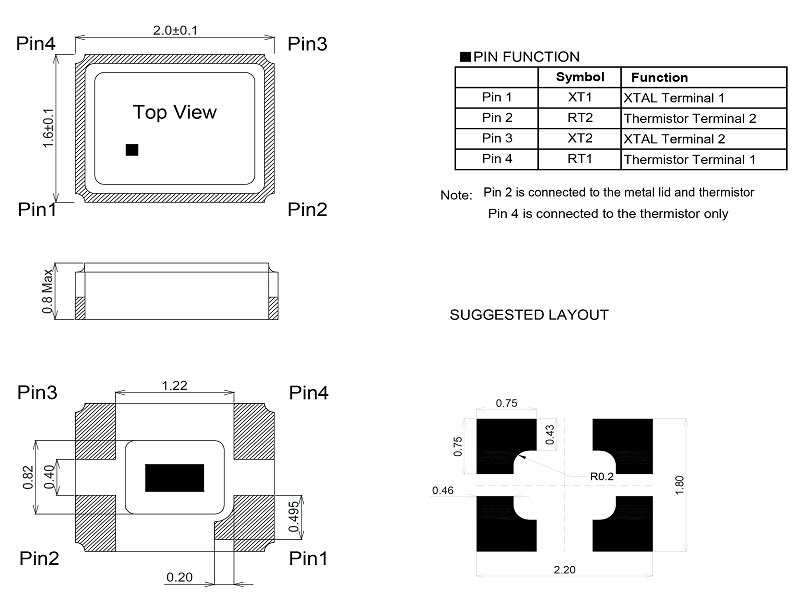

Dimensions and patterns(unit:mm):
