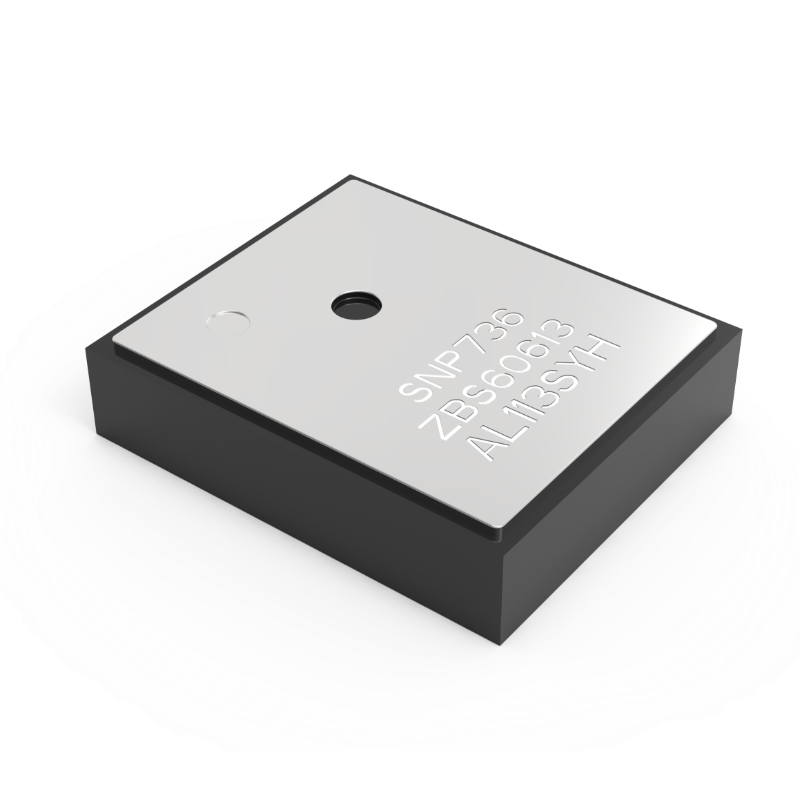

SNP736 is a high performance dual mode TPMS chip with BLE RF transmitter, the BLE series of products will focus on providing solutions for intelligent networking and automatic driving.
Block Diagram

Parameters

Parameter	Specification
Pressure range	900/1900kPa
Supply voltage	2.1～3.6V
Output power	0~10dBm（315/433Mhz/2.4Ghz）
Quiescent current (3V,25℃)	0.5μA
Debug mode	ASK/FSK/GFSK
RF current (2.4GHz,0dBm)	13mA
RF current (433/315MHz,5dBm)	5.2~5.8mA
Temperature range	-40～125℃
Package size	6*5*1.9mm
Package	LGA 24PIN
Pressure accuracy (-40~125℃)	±3kPa
Temperature accuracy (-20~70℃)	±2℃
