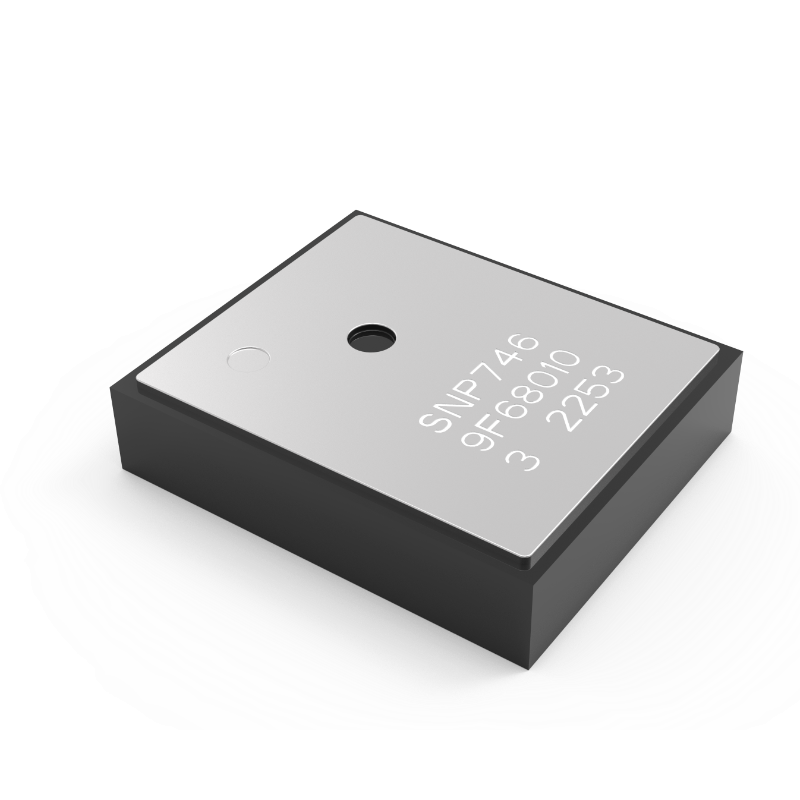

SNP746 is a high performance dual mode TPMS chip with BLE RF transmitter, supports BLE 5.1 protocol and bi-directional link, the BLE series of products will focus on providing solutions for intelligent networking and automatic driving.
Product Details
SNP746 is a high performance dual mode TPMS chip with BLE RF transmitter, supports BLE 5.1 protocol and bi-directional link, the BLE series of products will focus on providing solutions for intelligent networking and automatic driving.
Block Diagram
Technical Specifications
| Parameter | Specification |
| Pressure range | 900/1900kPa |
| Supply voltage | 2.1～3.6V |
| Output power | -20~+4dBm (adjustable) |
| Quiescent current (3V,25℃) | 0.3μA |
| Debug mode | ASK/FSK/GFSK |
| Tx Power (2.4GHz,0dBm) | 6.3mA |
| Rx Power (2.4GHz,0dBm) | 5.5mA |
| Rx sensitivity | -96dBm |
| Temperature range | -40～125℃ |
| Package size | 6*5*1.9mm |
| Package | LGA 24PIN |
