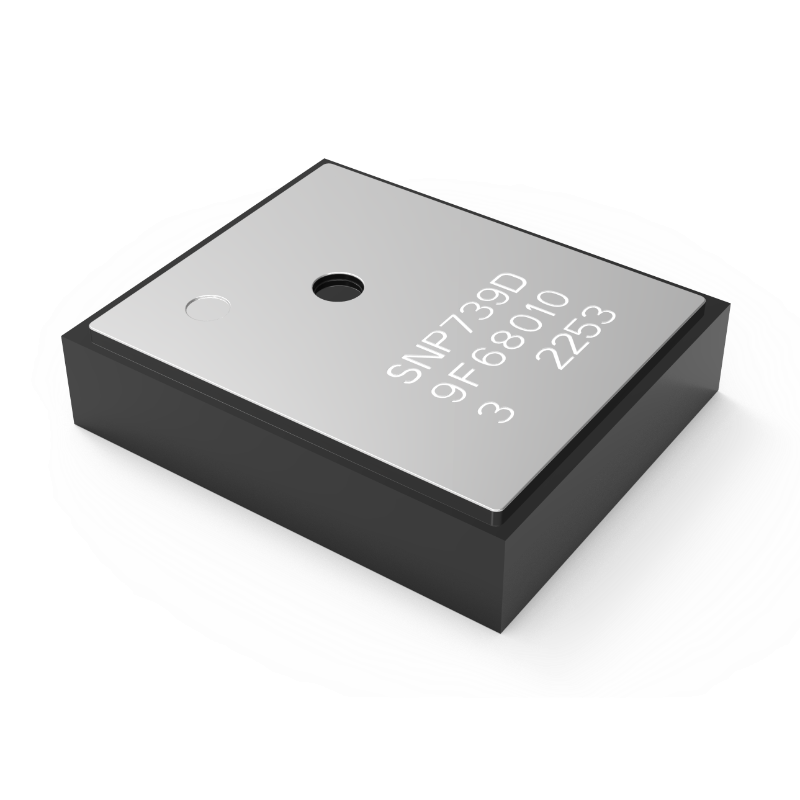

SNP739D can measure pressure, radial acceleration, temperature and power supply voltage, and has passed vehicle certification. SNP739D has a pressure automatic range function, with a range of 100 to 900/1900 kPa.
Block Diagram

Parameters

Parameter	Specification
Pressure range	900/1900kPa
Supply voltage	2.1～3.6V
Output power	5/8/10dBm
Quiescent current (3V,25℃)	0.2μA
RF current (5dBm,3V,-40~125℃)	min: 5.2mA max: 5.8mA
Temperature range	-40～125℃
Package size	6*5*1.9mm
Package	LGA 24PIN
Pressure accuracy	±5KPa/±7KPa (0~70°C)
emperature accuracy	±3℃(-20~90℃) ±5℃(-40~20℃, 90~125℃)
